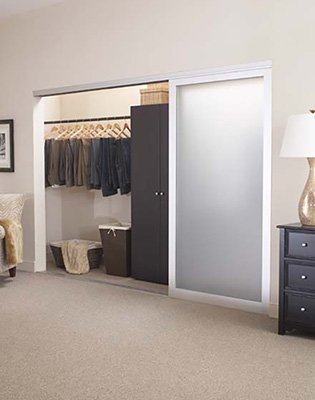

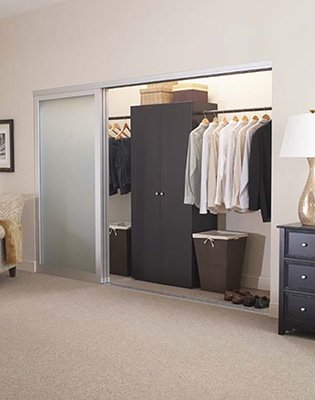

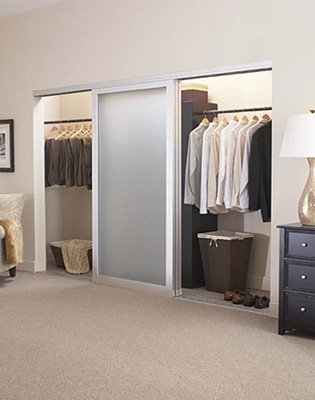

Eclipse®

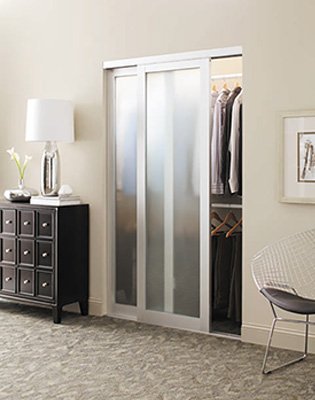

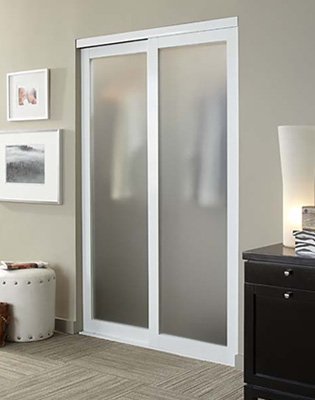

Anodized 3″ wide aluminum side mold and 3 1/2″ wide top and bottom mold, hollow tube design, Mystique™ Duratuf® tempered safety glass with color coordinated glazing vinyl and aluminum Ultraglide® track and channel
| Door Insert: | Duratuf® tempered safety glass |
| Door Style: | Framed |
| Frame: | Aluminum |
• Heavy-duty commercial quality anodized aluminum frame
• 3” wide side rail
• 3 1/2” wide top and bottom rail
• Ultraglide® 2 1/4” deep felt-lined top channel
• Bottom rolled with jump-proof track
• Top channel and bottom track with finish to match
• Heavy gauge 6063 extrusions (6463 is polished for bright colors)
• Side rails are hollow extrusions (tubular) for added strength
• Color coordinated glazing vinyl
• Standard sizes
» Width: 48”, 60”, 72”, 84”, 96”, 108”, 120”, 144”, 168” and 192”
» Height: 81” and 96”
• Custom sizes
» Maximum individual panel width is 60”
» Maximum opening height is 120”
• Adjustment range for opening height is up or down 1/2”

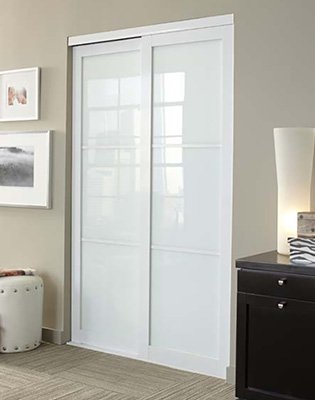

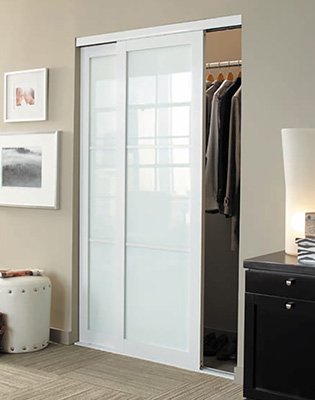

• Decorative back painted glass inserts
• Decorative textured and tinted glass inserts
• Decorative mirror inserts
• Decorative wood grain inserts
• True divided lite configurations

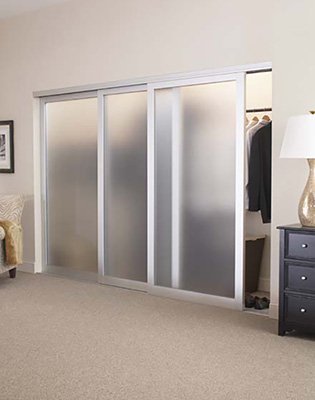

• One piece Ultraglide® triple track and channel up to 288”
• Face beveling design (v-groove)
